Vacuum Tanks

EVAC 1600 – Portable vacuum Unit

Specifications

Vacuum System

  • Honda 5.5 HP petrol egine or Yanmar 6 HP diesel engine,
    both with electric starter motor
  • 70 CFM Conde rotary vane vacuum pump
  • Belt driven with guard
  • 12V battery
  • 50mm vacuum system
  • All plumbing uses steel reinforced fuel suction hose with stainless steel clamps
  • 75mm vacuum tank inlet – including blockage removal port with camlock fitting
  • 75mm discharge ball valve
  • 10m of 50mm suction hose including ball valve and suction lance
  • Primary shut off
  • Secondary shut off with drain point
  • Oil catch muffler with stainless steel filter and drain point

Vacuum Tank

  • 1600 L waste capacity
  • 5mm stainless steel barrel construction, skid mounted designed to be forked from four sides
  • Tie down points
  • Vacuum tank constructed to withstand 65 percent vacuum, no pressure capability
  • 250mm wash out facility, 2 eyebolts and wing nuts to secure lid
  • 810 KG empty weight
  • Sight glasses to observe waste level in tank
  • Dimensions: 2510mm L, 1370mm W, 1880mm H

Other Components

  • 60 L water capacity with sight tube
  • 12 V water pump- 17 LPM flow 40 PSI pressure, manual on/off switch and water filter
  • 18mm garden hose, 15m with spray nozzle
  • Pressure relief valve
  • Vacuum relief valve
  • 65mm vacuum pressure gauge

Also available EVAC 800 and EVAC 3200

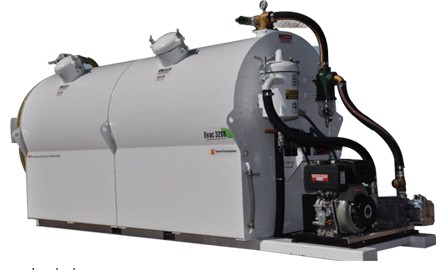

EVAC 3200 – Portable vacuum Unit

Specifications

Vacuum System

  • Yanmar 10 HP diesel engine with electric start motor
  • 115 CFM Conde rotary vane vacuum pump
  • Belt driven with guard
  • 12 V Battery
  • 50mm vacuum system
  • All plumbing uses steel reinforced fuel suction hose with stainless steel clamps
  • 75mm vacuum tank inlet – including blockage removal port with camlock fitting
  • 100mm discharge ball valve
  • 10m of 50mm suction hose including ball valve and suction lance
  • Primary shut off
  • Secondary shut off with drain point
  • Oil catch muffler with stainless steel filter and drain point

Vacuum Tank

  • 3200 L waste capacity
  • 5mm stainless steel barel construction, skid mounted designed to be forked from two sides
  • Tie down points
  • Vacuum tank constructed to withstand 65 percent vacuum, no pressure capability
  • 250mm wash out facilities, 2 eyebolts and wing nuts to secure lids
  • 1350 KG empty weight
  • Sight glasses to observe waste level in tank
  • Dimensions: 4420mm L, 1370mm W, 1880mm H

Other Components

  • 60 L water capacity with sight tube
  • 1200 L water capacity with sight tube
  • 12V water pump – 17 LPM flow 40 PSI pressure, manual on/off switch and water filter
  • 18mm garden hose, 15m with spray nozzle
  • Pressure relief valve
  • Vacuum relief valve
  • 65mm vacuum pressure gauge

Also available EVAC 800 and EVAC 1600
